    Empress Technical News -  December 2010

      Empress Database Callable Administration API
    Ubiquitous Embedded Database Administration



    Embedded systems nowadays store more and more data in databases. With this increase in database deployment, sophisticated database administration tasks have to be performed on the embedded devices. However, embedded systems need to keep on working without interruption or human intervention, so a callable database administration API is a must have.
    Database administration in embedded systems consists of two groups of tasks, namely 1) initial configuration and 2) ongoing maintenance. Initial configuration includes database design and tuning. Ongoing maintenance includes: backup, automatic recovery, reinitialization of the database from scratch or backup, logging, data reorganization, data integrity checking and repairing, index rebuilding, etc.
    To address the ever-growing need for smarter and more efficient database administration in embedded systems, Empress Software has introduced the Empress Callable Administration API.

    Empress Callable Administration API Overview
    Empress Callable Administration API has been implemented to provide similar functionality to standard command line Empress utilities. Callable Administration API routines may be used in place of utilities.
    The following database administration functionality is supported via the corresponding callable administration API in the table below.

    Empress Administration Functionality

    Empress Callable Administration API

    DB checking and repairing


    DB export


    DB import


    Connectivity Server Administration


    DB on-line backup


    DB on-line recovery



    Empress Callable Administration API routines can be run as either tasks or processes and provide additional flexibility to run database administration tasks for both process and task-based operating systems.

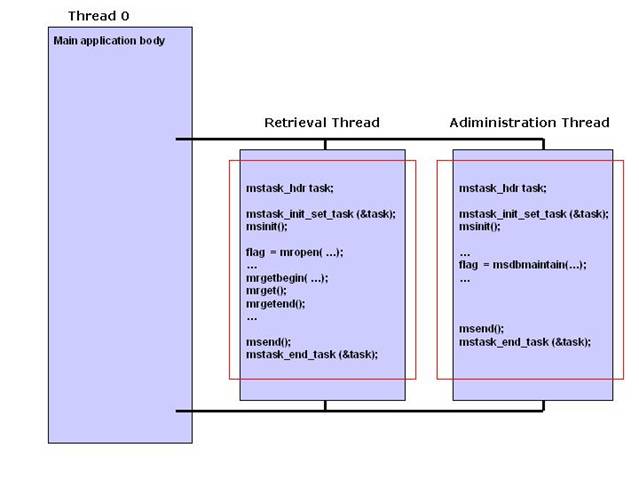

    Figure 1 describes the scenario where the main application spawns two threads to perform two database tasks. The first thread executes an Empress task that performs database retrieval operations while the second thread invokes the Empress Callable Administration API routine msdbmaintain execute a database integrity-checking task.

    Figure 1: Scenario using Empress Callable Administration API in a thread
    Compiling and Linking with Callable Administration API
    In order to compile and link a program that includes Empress callable Administration API routines, add the option –utilapi to the Empress compiler utility empcc:
    empcc –utilapi example.c
    The option –utilapi requires that version of Empress Database have multi-thread support.
    Most embedded operating systems such as Android, Apple iOS, eSOL, Linux (embedded), Lynx O/S, MontaVista Linux, QNX, T-Engine, Windows CE, Windows Mobile or VxWorks allow Empress to have multi-thread support.
    Empress Callable Administration API Example
    The example program called
    example.c is shown below.  This program executes the database checking callable administration API routine msdbmaintain against the database " repairs" .
    #include      < mscc.h>
    #define        DATABASE   "
    int main (int argc, char** argv)
                int   status
                msbool found_error_and_fix
                if (! ())
                          fprintf (stderr, " Unable to initialize Empress\n" )
                          return 1
                if ( (DATABASE, false, & status, & found_error_and_fix) != 0)
    fprintf (stderr, " msdbmaintain () unsuccessful: %s\n" ,                           mrerrmsg())
                          return 1
                printf(" DATABASE: %s\n" , DATABASE)
                printf(" status: %d\n" , status)
                printf(" found_error_and_fix: %d\n" , found_error_and_fix)
                msend ()
                return 0
    The first parameter in the routine msdbmaintain is the database that requires checking.
    The second parameter in the routine
    msdbmaintain   (false) invokes a quick check that involves only 6 default checks (out of 19), namely:
    CHECK  1: Recreating shared memory as necessary
    CHECK  2: Find all clients which terminated improperly
    CHECK  3: Check semaphores
    CHECK  4: Resolve transactions
    CHECK  5: Resolve locks
    CHECK 16:  Check database coordinator facility
    The third parameter in the routine
    msdbmaintain status) is the pointer to the last status of
    The fourth parameter in the routine
    msdbmaintain (& found_error_and_fix) is the pointer (msbool* that shows whether msdbmaintain problems and fixed them. If the value is it shows it found problems and fixed them. If the value is false it shows it didn’t find problems.
    Instead of Summary
    To address the ever-growing need for smarter and more efficient database administration in embedded systems, anywhere and everywhere, Empress Software has provided Empress Callable Administration API. Empress Callable Administration API is implemented to provide database checking and repairing, server administration or backup. These complex tasks that are typically run by a database administration of the enterprise database system can now be automated for embedded systems making them truly ubiquitous.
